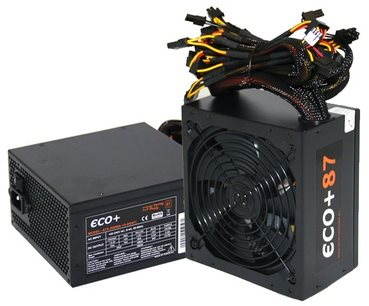

The reliability of your PC depends on the quality of the resource. Invest in the Eurocase ATX to get a source that combines long service life and economy.
The power supply is an integral part of the equipment of each computer. Its long-term reliability is based on its quality. The Eurocase ATX model meets all certifications and has a guaranteed service life of at least 50,000 hours, while guaranteeing energy-saving operation. The power supply is fitted with a fan, that has a diameter of 140 mm and its speed is controlled by a thermoregulatory system. Thanks to its 500 W power rating, it is more suitable for unpretentious assemblies. The connectors are represented in a traditional assembly and include 6 × SATA, or 2 × PCIe power.
Key features
Guaranteed service life of 50,000 hours
Saving traffic thanks to active PFC
Electronic circuits reliably protect against overload or short circuit
Maximum current consumption: + 3.3 V - 20 A + 5 V - 15 A + 12 V - 40 A - 12 V - 0.5 A + 5 Vbs - 2.5 A
Specifications
Performance
500 W
Format
ATX
Features and functions
Thermal speed control
Performance
85 %
Connectors
ATX 24pin
Performance and format
Performance
500 W
Format
ATX
Equipment
Features and functions
Thermal speed control
Efficiency
Performance
85 %
Connectors
Connectors
ATX 24pin
Number of PCI express 8-pin
2pc(s)
Number of serial ATA 15-pin
6pc(s)
Number of molex HDD 4-pin
3pc(s)
Number of molex FDD 4-pin
1pc(s)
Cooling system
Fan size
140 mm
Dimensions
Width
150 mm (15 cm)
Height
85 mm (8.5 cm)
Depth
165 mm (16.5 cm)
More Specifications
Note:
Specifications can be changed without notice. Images are for illustrative purposes only.
