Fortron FSP350-60GHN

PC Power Supply - ATX, 350W, 80 Plus Bronze, active PFC, 1x PCIe, 3x SATA, 120mm fan, power cable not included
Code:  UD949a5b

Don't like the alternatives? Choose from the full product list

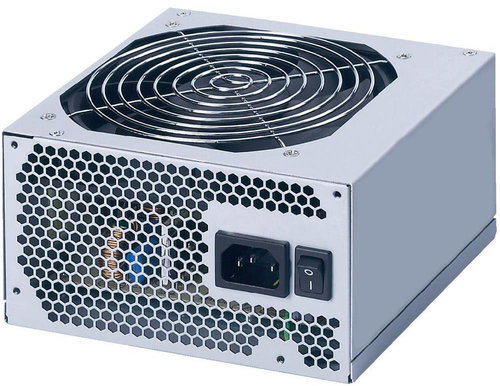

Fortron FSP350-60GHN

This ATX power supply has a total power of 350W. It is reliable and effective, and will satisfy users who are looking for a high-efficiency and energy-saving way to power their system, because the power supply is 80 PLUS BRONZE certified. It is designed to power advanced systems and provides three connectors for SATA devices, 2x 4-pin Molex HDDs and 1 FDD 4 pin Molex. It also includes complete protection (OCP, OVP and SCP) for your PC. The power supply is also fully compatible with Intel Haswell. A power cable is not included.

Additional information:

Format:
ATX 2.3

Protections:
OCP (Over Current Protection)
OVP (Over Voltage (Surge) Protection)
SCP (Short Circuit Protection)

Fan:
120 x 120mm
Silent

MTBF:
100,000 hours at 25° C

Maximum Consumption:
+3.3 V: 21 A
+5 V: 20 A
12V Branch 1: 15 A
12V Branch 2: 18 A
-12 V: 0.5 A
+5 V sb: 3.5 A

Connectors:
1 x 20/24 pin ATX connector
1 x 4-pin CPU connector
3 x Serial ATA HDD connectors
2 x 4-pin Molex HDDs
1 x FDD 4 pin Molex

Specifications

Performance
350 W
Format
ATX
Features and functions
Active PFC, Power switch
Certification
80 PLUS Bronze
Performance
86.52 %

Performance and format

Performance
350 W
Format
ATX

Equipment

Features and functions
Active PFC, Power switch

Efficiency

Certification
80 PLUS Bronze
Performance
86.52 %

Connectors

Connectors
ATX 24pin
Number of PCI express 6-pin
1pc(s)
Number of serial ATA 15-pin
3pc(s)
Number of molex HDD 4-pin
2pc(s)
Number of molex FDD 4-pin
1pc(s)

Cooling system

Fan size
120 mm

Dimensions

Width
150 mm (15 cm)
Height
140 mm (14 cm)
Depth
86 mm (8.6 cm)
More Specifications

Carl-Friedrich-Benz-Straße 13, 47877 Willich, GERMANY, https://www.fsp-group.com/en/index.html, +49 2154 894 012, [email protected]

Note:

Specifications can be changed without notice. Images are for illustrative purposes only.
