Funke YAGINX 790 LTE
Funke YAGINX 790 LTE
The Funke YagiNX brings the time-tested and reliable antenna design to the 21st century, delivering the power of larger antennas in a small package. The unique LTE INERT technology comes with integrated filters and shielded connectors and cables, providing a continuous signal reception free of 4G LTE interference. The YagiNX can be installed both horizontally and vertically without any tools. With its compact size and modern technology, it's safe to say that the Funke YagiNX is one of the best antennas on the market, allowing for high-quality digital television reception up to 60 km from the transmitter.

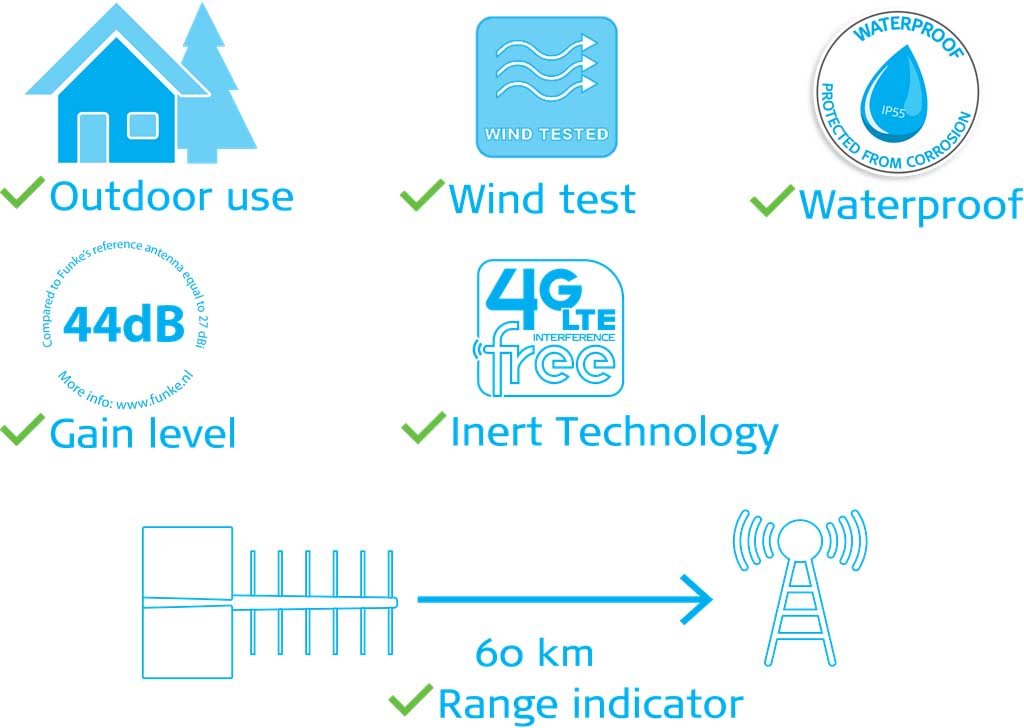

Key features
- active antenna that can withstand even extreme weather conditions
- degree of protection IP55 & wind resistance of up to 120km/h
- the LTE filter guarantees a continuous TV signal reception
- horizontal and vertical installation – no tools needed
- power cord or external power
Built to last
Equipped with the IP55 and wind resistance of up to 120km/h, the YagiNX can withstand extreme weather conditions. The antenna can be powered either directly from the TV and set-top box, or you can use one of our power adapter.
Parameters and Specifications:
Basic:
Preferred applications: outdoor stationary reception
Frequency range: 470-790MHz
Channels: 21-60 (UHF)
Antenna gain: 27dBi
Amplifier gain: 20dB
Noise: 1.3dB
Connector: F (Female)
Power supply:
Source: Cable or power adapter
Type: +5V ± 0.5V / 60mA
Design:
Degree of protection: IP55
Weight: approximately 400g
Dimensions: 380 x 225 x 40mm
Specifications can be changed without notice. Images are for illustrative purposes only.
