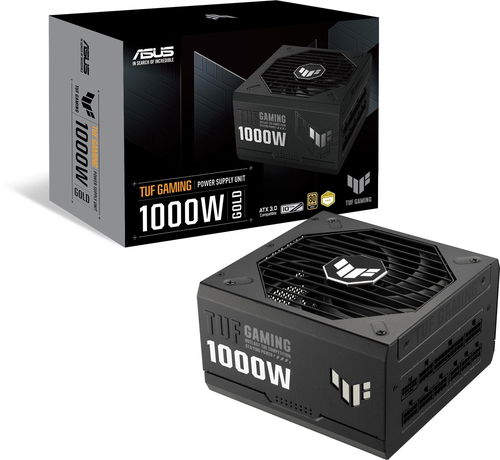

ASUS TUF GAMING 1000W GOLD
ASUS TUF GAMING 1000W GOLD
ASUS TUF Gaming 1000W Gold offers military-grade certification, a premium fan design and PCB protection. All this combines to create an efficient and durable power source. The result is a PSU that will reliably power your build. Enhanced with military-grade components, the ASUS PSU meets stricter MTBF testing and withstands harsh conditions and extreme temperatures. TUF Gaming 1000W Gold can weather any storm, even if you live in a tropical climate with high humidity.
1000W
Power
ATX
Format
80 PLUS Gold
Certification
Fully
Modularity
Key features of the ASUS TUF Gaming 1000W Gold PSU
- Total power of 1000W
- Efficiency guaranteed by 80 PLUS Gold certification
- Components meet military-grade certification
- 135mm Axial-tech fan ensures quiet cooling
- Modular cabling simplifies organisation in your build
- The PSU is fully compatible with the ATX 3.0 standard
- Protective PCB coating protects against moisture and dust
Choosing a power supply
When choosing a suitable PC power supply, the key parameter besides the format is its power output. This indicates the maximum number of Watts the PSU can continuously supply to the components in the computer. It is a good idea to use a web-based calculator to work out the optimal power output based on your chosen components.
Military-grade components
The capacitors and chokes undergo demanding tests to earn military-grade certification. A protective PCB coating shields against moisture, dust and extreme temperatures. Dual ball fan bearings can last up to twice as long as sleeve bearings. The Axial-tech fan has a smaller hub that facilitates longer blades and a barrier ring that increases downward air pressure. The ring is enlarged to 135mm, so it cools at low RPMs while producing less noise.
80 Plus Gold certification and ATX 3.1
TUF Gaming 1000W Gold is equipped with low-ESR Japanese capacitors that ensure efficient operation, earning it 80 PLUS® Gold certification. This means it achieves up to 92% efficiency, which leads to less heat, lower fan noise and greater reliability. ATX 3.1 regulates voltage and current delivery for hardware. The PSU comes with a 16-pin PCIe cable suitable for powering PCIe Gen 5.1 graphics cards with up to 600W of power.
Modular cables and connectors
Fully modular etched cables keep your build neat and tidy. These etched cables are made from a pliable premium material. They are easy to bend during installation and operate at temperatures 50°C lower than the safety limit when routing cables. These cables also meet the strict UL1581 flammability test standards and UL758 certification. Upgraded PCIe connectors ensure cooler operation and improved power efficiency. This means a significant 29% reduction in connector temperature.
Extreme durability testing
This test, which replicates real-world 75cm drops from all sides, helps ensure that every TUF Gaming 1000W Gold PSU can withstand damage from unexpected drops, bumps and shocks during shipping and everyday use. Extensive vibration testing helps ensure that every part of the TUF Gaming 1000W Gold PSU stays in place and remains functional. TUF Gaming 1000W Gold is able to handle drastic temperature changes from -40°C to 85°C for 27 cycles and continue to function. TUF Gaming 1000W Gold is corrosion-resistant. It can withstand up to 95% humidity and salt spray for up to 240 hours. Even after that, it remains fully functional.
Connectors
- 1× ATX 24-pin
- 2× CPU 8-pin (4+4)
- 4× PCIe 8-pin (6+2)
- 1× 12V-2x6 16-pin
- 5× SATA 15-pin
- 4× Molex 4-pin
Package contents
- PSU
- Power cable
- Motherboard power cable
- 2× CPU 8-pin
- 1× PCIe Gen 5 16-pin (12+4)
- 3× PCIe 8-pin
- 2× SATA 15-pin
- 1× Molex 4-pin
- 3× TUF Gaming cable tie
80 Plus certification in the European market
The 80 Plus certification was created to objectively evaluate the efficiency of computer power supplies. This gives users a simple and clear way to compare different models. On the European market (where a voltage of 230V is used), there are six levels of 80 Plus certification with set requirements for computer power supplies. Higher energy efficiency primarily means lower energy consumption.
| PC power supply load | Efficiency at 20% load | Efficiency at 50% load | Efficiency at 100% load |
|---|---|---|---|
| 80 PLUS | 82% | 85% | 82% |
| 80 PLUS Bronze | 85% | 88% | 85% |
| 80 PLUS Silver | 87% | 90% | 87% |
| 80 PLUS Gold | 90% | 92% | 89% |
| 80 PLUS Platinum | 92% | 94% | 90% |
| 80 PLUS Titanium | 94% | 96% | 94% |
Specifications
Performance and format
Equipment
Efficiency
Connectors
Cooling system
Dimensions
