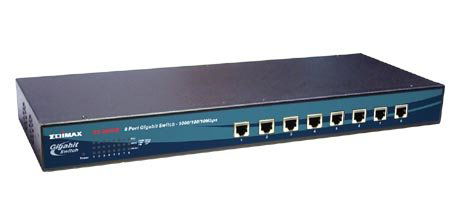

Edimax ES-5800R+, Smart Switch, 8xGE, 8K MAC

Gigabit switch (packet switch) with eight ports for network speed 10/100/1000 Mbit / s.

Features:
Complies with the IEEE802.3 Ethernet, IEEE802.3U Fast Ethernet and IEEE802.3ab Gigabit Ethernet standard
Provide Store-and-Forward architecture and full wire speed filtering and forwarding rate
Support 10/100/1000Mbps and Auto-MDI/MDI-X
Support up to 8K MAC address
Provide up to 512KBytes buffer memory
Support IEEE802.3 compliant full-duplex flow controland back-pressure half-duplex control felow

Specifications:
Standard:IEEE802.3, IEEE802.3U, IEEE802.3ab
Gigabit Ports:8 ports with RJ-45 connectors

Network Media:1
0Base-T UTP / STP category 3 or 5 cable
100Base-TX, UTP / STP Category 5 cable
1000Base-TX, 4 pairs category 5 cable

Architecture:Store and Forward
MAC Address Table:8K
Buffer Memory:512KBytes
Dimension:440 mm (L) x 172 mm (W) x 45 mm (H) 1U rackmount
Weight:2nd4 kg (53lb.)
Temperature:0 to 50C
Humidity:10% ~ 90% (noncondensing)
Input Power Requirement:100 - 240VAC, 50 - 60Hz, Auto-sensing
Certification:FCC Class A, CE Mark
