Homematic IP Window and door sensor - optical plus - HmIP-SWDO-PL
Homematic IP Window and door sensor - optical plus - HmIP-SWDO-PL

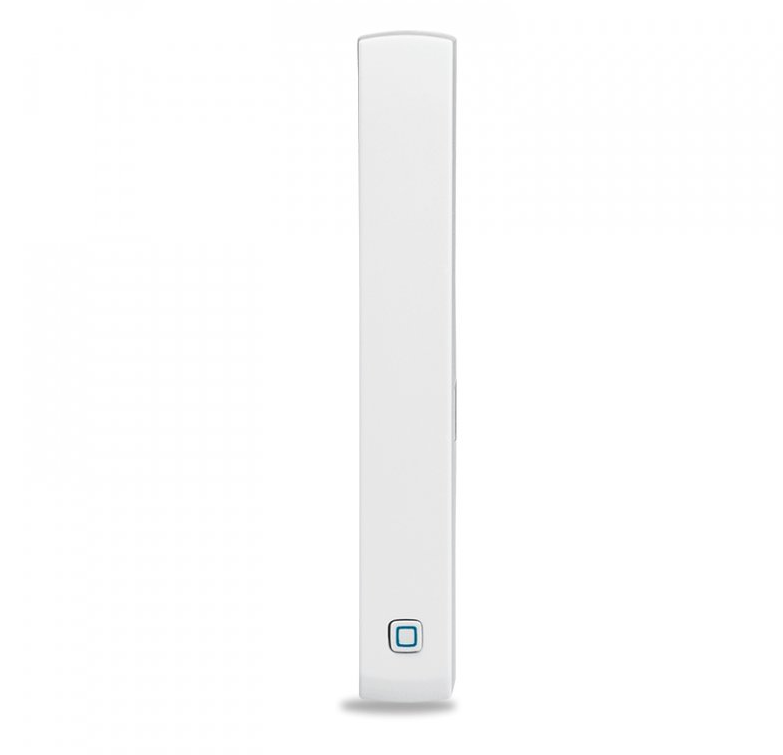

Homematic IP Optical window and door sensor HmIP-SWDO-PL
The wireless optical window and door opening sensor Plus, with 100% longer operating time can be used as an alarm detector for reliable protection of windows and doors of all types and designs or in combination with other Homematic IP elements to automate, control and monitor heating in the Homematic IP smart home system. Connection via radio waves, control via Android and iOS app in Czech, English and other languages. It works on the principle of innovative optical technology of infrared light barrier in combination with the HmIP-HAP Central Unit.
Indoor window and door detector for Homematic IP smart home system
Do you need to guard entrances such as doors or windows against intruders, thieves or other miscreants? Do you forget to open the windows during the winter months during ventilation, wasting money on expensive energy? In this case, you can use the services of the wireless optical contact Plus, which reliably detects every opening of doors or windows and can also limit or stop the heating. The sensor is designed for indoor use and is part of the Homematic IP smart home system.
- Protection of windows and doors in the event of a breach. It will alert you to danger and activate an alarm.
- When a window or door is opened, it reduces the heat supply to the radiator body.
- The power supply with AAA batteries will provide approximately 4 years of operation.
- Control via the Homematic IP mobile app in Czech localization.
- Secure wireless communication with AES-128 encryption.
- Wireless communication and battery operation allows easy installation without wiring.
System operation
Wireless connection of Homematic IP devices to the HmIP-HAP Central Unit offers convenient setup and control of a complex smart home system using an intuitive app (for Android and iOS in CZ) designed for smartphones. The mobile app enables instant response to messages and alerts from your smart home system and connects all Homematic IP devices via a free, unlimited cloud that allows you to set up and control the system from anywhere in the world, transfer important information and update the software and firmware of the devices, and forward configuration and operational commands from the Homematic IP app to individual smart home devices.
Innovative window and door status detection technology

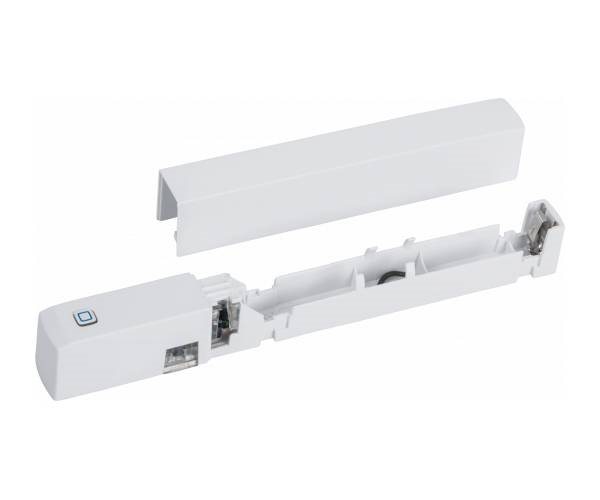

The sensor does not work on the conventional magnetic contact principle and no additional magnet attachments are required for its functionality, which greatly simplifies installation. The integrated optical infrared light barrier technology reliably detects open/closed windows or doors. Compared to the HmIP-SWDO model, the Plus model has a larger tray to accommodate 2 AAA batteries and thus offers 100% longer operating time. Within the Homematic IP system, the Plus sensor takes on several tasks simultaneously.
Smart alarm functions of the optical window and door sensor
In security mode, by activating the Plus optical sensor, the system immediately performs the preconfigured operation. The Homematic IP mobile app provides you with up-to-date information on the security status of your smart home system, giving you a sense of security and safety when you leave home, whether you're on the move or anywhere else. In addition, your home or office can be even safer if your security solution includes the HmIP-ASIR-2 indoor siren or the HmIP-ASIR-O outdoor siren. In this case, if the protection of the guarded area is breached, a loud alarm sound is automatically triggered.
Smart heating control features help you reduce expensive energy costs
Fresh air without wasting energy, this is the combination of the HmIP-SWDO-PL wireless optical sensor with the HmIP-eTRV Homematic IP radiator thermostatic controllers. If a window or door is opened for ventilation, the room temperature is automatically lowered. The degree of temperature reduction can even be defined by the user in the Homematic IP mobile app. When the window or door is closed, the heating is activated again until the room temperature is back to the pre-configured level. In this efficient way, you can control the room temperature and the heating or air conditioning process according to your individual needs, resulting in immediate savings and a reduction of up to 30% in your energy costs.
Protection in case of sabotage
If an intruder gets to the sensor, the tamper contact reliably detects the tampering and triggers an alarm. Inter-device communication ensures that the alarm is triggered even without an internet connection. If your smart home security solution includes a Homematic IP siren (outdoor or indoor), the siren will remain in alarm mode in the event of sabotage or destruction of the HmIP-HAP Central Unit.
No alternative text for the photo!
Wide range of applications
The battery components of the Homematic IP system, including the wireless optical window and door sensor, are ideal for all-round protection in homes, offices, apartments, cottages, etc. During installation and when creating profiles and scenarios in the mobile app, you can take into account all your needs in terms of building security requirements, automation, heating and a range of other criteria depending on your priorities. In a simple way, you can gradually expand, control and automate your smart home system.

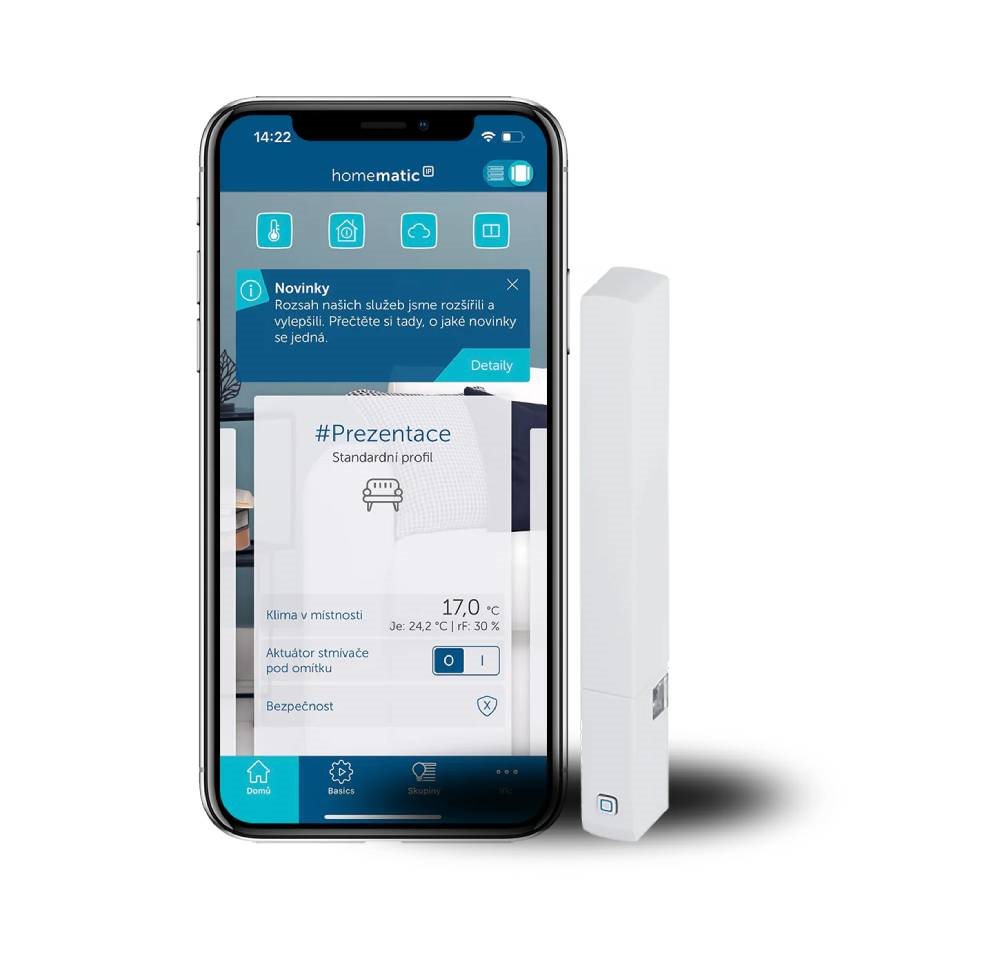

Homematic IP is controlled by an application with a Czech interface
With Homematic IP, everything is at your fingertips - free, intuitive and easy to use!. With the Homematic IP app for smartphones, you can handle even seemingly complex configurations in just a few minutes. Once connected to the central unit, the app becomes the smart hub of your installation, allowing you to control and configure the management of your entire smart home, whether you're at home, at work or on the go. The free mobile application does not require registration and is designed for smart devices with Android and iOS operating systems in Czech localization. It is there to constantly adapt to modern trends, optimise and evolve according to your wishes and needs.

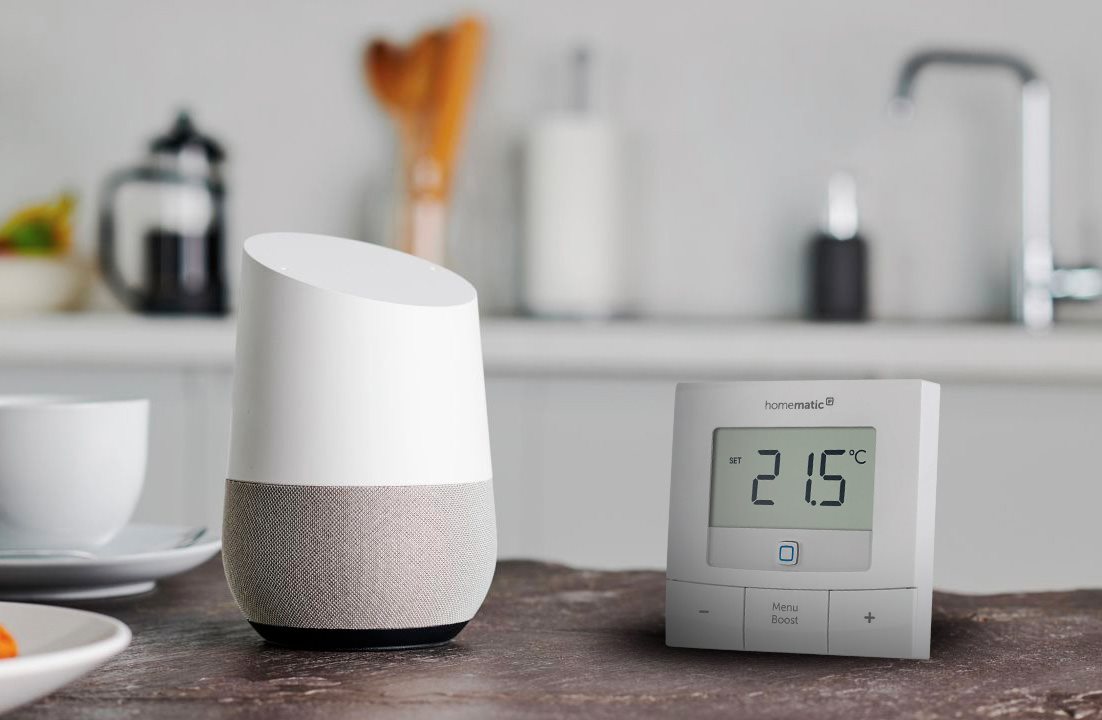

Voice control
In addition to manual control and remote control via a mobile app, the Homematic IP smart home system, which includes optical window and door sensors, also offers voice control and communication with Google Assistant, Amazon Alexa and Home Connect Plus technology. For secure, stable and reliable communication between devices, the system has its own unique radio technology with encrypted security, making it the first smart home system whose protocol, IT and data security are regularly tested and certified by the independent VDE institute.
Easy installation in just a few moments
Installation of the HmIP-SWDO-PL Homematic IP wireless optical window and door sensor is very simple and can be done by anyone. Wireless communication and battery operation offer the possibility of simple installation without the need for cabling. 3M adhesive tapes or screws and dowels are included for hassle-free installation of the fixings at the selected location.
Key Features of the HmIP-SWDO-PL Optical Window and Door Sensor
- Detection of opening and closing windows and doors using innovative infrared light barrier optical technology
- Compared to the HmIP-SWDO model, the Plus model is powered by 2 AAA batteries and thus offers 100% longer operating time

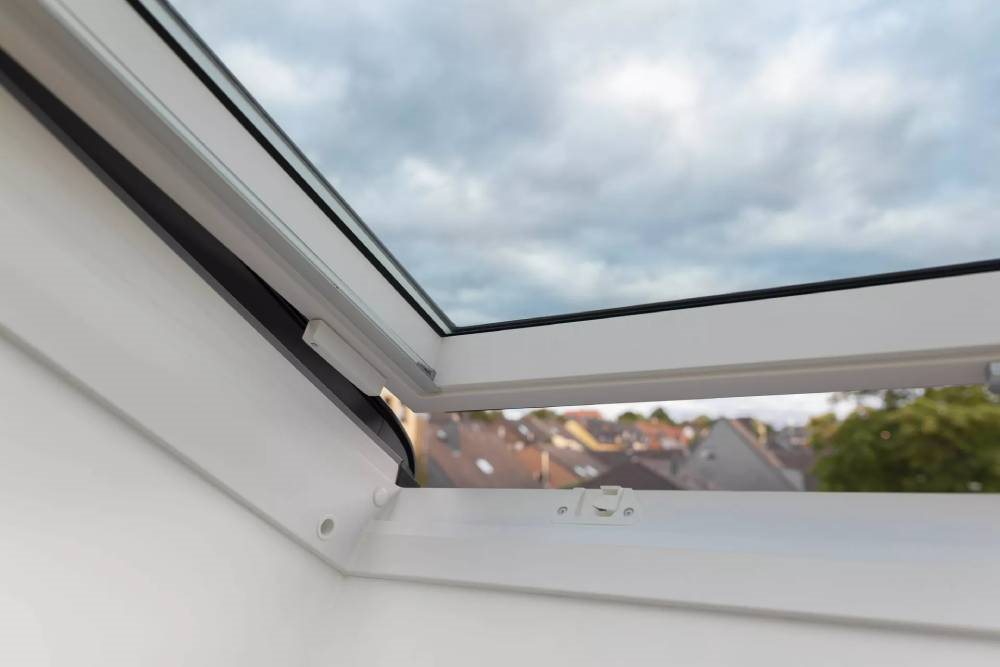

- Variable mounting options for doors or windows (including roof-mounted)
- Detects unwanted intrusions by overcoming doors or windows
- Front cover in brown as part of the delivery to match the appearance to the window or door frame
- Sabotage contact
- High security thanks to comprehensive AES encryption and server location in Germany
- Voice control support (Amazon Alexa, Google Assistant)
- Home Connect Plus support
- Operation requires connection to the HmIP-HAP central unit
- Wireless power supply with two AAA 1.5V batteries for up to 4 years of operation
- Package contents: 1× HmIP-SWDO-PL window and door sensor, 1× reflective sticker (for dark surfaces), 2× AAA alkaline batteries, mounting material, Czech instructions
