ASROCK B650M PG LIGHTNING
ASROCK B650M PG LIGHTNING

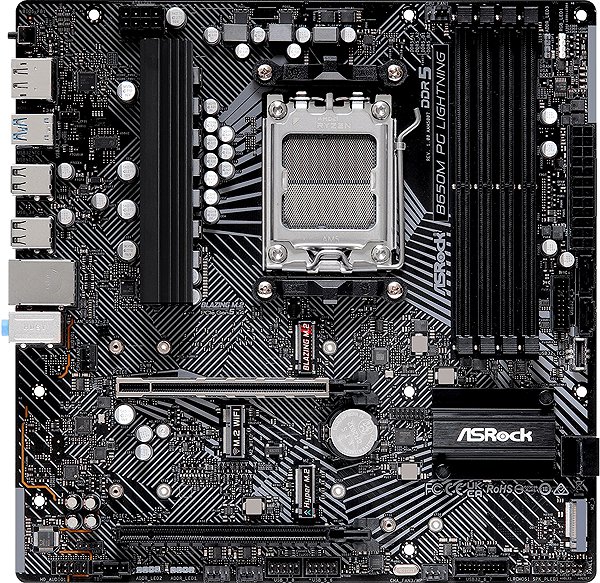

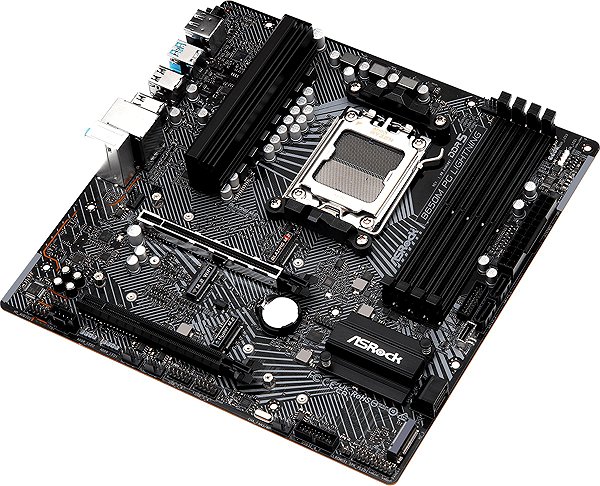

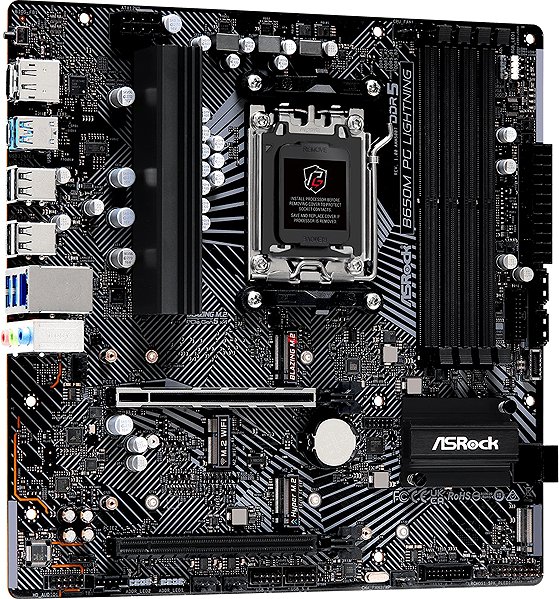

This ASROCK motherboard is built on the AMD B650 chipset with the AMD AM5 socket for CPU insertion. Classically, it has a sound card which can handle 8,0 channels. It combines compact dimensions with an adequate number of adaptors to create a great home PC setup. If you want to build a PC with this particular model, it is neccessary to use a compatible mATX (Micro ATX) format PC case.
ASROCK B650M PG LIGHTNING Motherboard Key Features
- AMD AM5 socket and AMD B650 chipset
- ASROCK B650M PG LIGHTNING format: mATX (Micro ATX)
- Integrated audio card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can hold 4 × dual-channel memory modules
ASROCK B650M PG LIGHTNING Motherboard Connectivity
Computer RAM is absolutely essential, so this ASROCK motherboard has 4 RAM slots. It's designed for DDR5 type DIMM operating memory. You can attach them in dual-channel mode. This motherboard is compatible with modules with a clock speed of up to 7200 MHz.
ASROCK B650M PG LIGHTNING Connectors
The motherboard is ready to accommodate 2 graphics cards with PCI Express 16x slots. The internal interface also includes a total of 3 popular M.2 slots. In terms of USB ports, it has got 4 × USB 2.0, 2 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports. You'll also be pleased to know that it has TPM, meaning better security, an RGB LED Header, and Thunderbolt
- The motherboard comes with an integrated Realtek ALC897 sound card

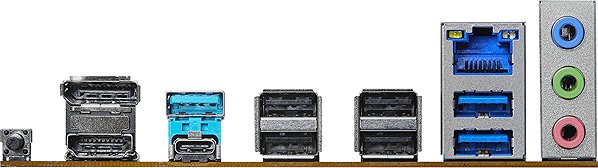

- Supported external communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.4
- Supported internal interfaces: RGB LED Header, Thunderbolt header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header, M.2 PCIe 5.0, PCIe 4.0 x16, PCIe 3.0 x4 and Serial ATA III
- Maximum supported RAM clock speed: 7200 MHz
- SATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
