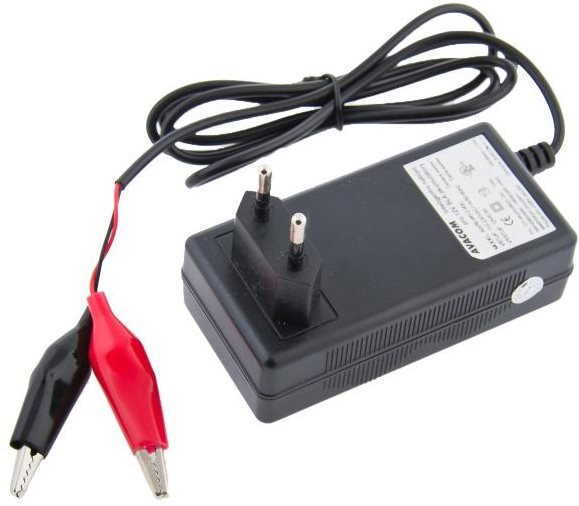

Avacom for WILSTAR 12V/0.8A for Lead AGM/GEL Batteries (3 - 10Ah)
Avacom for WILSTAR 12V/0.8A for Lead AGM/GEL Batteries (3 - 10Ah)
The Avacom WILSTAR charger is a microprocessor-controlled 3-stage charger designed for VRLA AGM/GEL batteries with a capacity of 3 to 10Ah. It allows you to charge maintenance-free, hermetically sealed AGM/GEL batteries. The charging process is controlled electronically, which prevents overcharging. The charger is automatic, so the process is automatically managed until the battery is fully charged. It can also be used as a maintenance charger and can remain connected to the battery even after the green LED lights up. The Avacom WILSTAR charger offers electronic output protection against short circuits and reverse polarity. The device charges in approximately 4–6 hours.
Key features of the Avacom for WILSTAR 12V/0.8A charger for lead-acid AGM/GEL batteries (3–10Ah)
- Microprocessor-controlled 3-stage charger for VRLA AGM/GEL batteries with a capacity of 3 to 10Ah
- Allows you to charge maintenance-free, hermetically sealed AGM/GEL batteries
- It's automatic, so the charging process is automatically managed until the battery is fully charged
- Can also be used as a maintenance charger
- The Avacom WILSTAR charger offers electronic output protection against short circuits and reverse polarity
Instructions for use:
1) Connect the charger's connectors to the battery.
2) Check that the connection is correct; the red connector must always be connected to the battery's + terminal.
3) Plug the charger into the mains.
4) After plugging it in, the red LED will light up – the battery is starting to charge.
5) Long-term or frequent use of the charger for batteries with a capacity of less than 3Ah may damage the battery due to high charging current or shorten its lifespan. If the charger is used for batteries with a capacity greater than 10Ah, the charging time will be longer, but there is no risk of damage or reduced battery life.
6) The green LED lights up – the battery is charged.
7) After the green LED lights up, disconnect the charger from the mains and disconnect the connectors from the battery.
AVACOM s.r.o., Ocelářská 659/5, 190 00 Praha 9, +420284021953, [email protected]
Specifications can be changed without notice. Images are for illustrative purposes only.
